Concentrator table

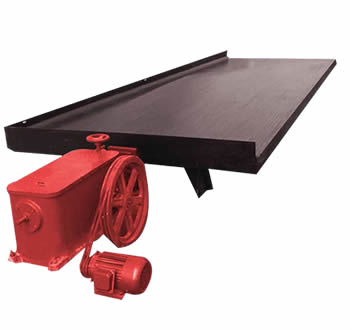

Table concentrator is a mineral selecting machine for fine materials and it works by gravity. It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Our company has long history of table concentrator production, and we provide various table concentrators with high process capacities, high recovery ratse and high enrichment ratios.
Click here to get Concentrator table and parts' price.
Wide range of applications
- Features
- Technical data
Table concentrator is a mineral selecting machine for fine materials and it works by gravity. It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal. Our company has long history of table concentrator production, and we provide various table concentrators with high process capacities, high recovery ratse and high enrichment ratios.
Table Concentrator Introduction:
Table concentrator is a mine selecting machine for fine materials and it works by gravity.
Application of Shaking Concentrator:
It is widely used in selection of tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.

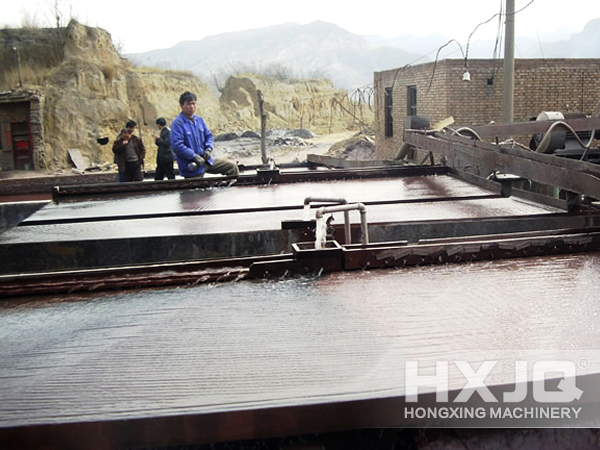

.jpg)
Advantages of Shaking Concentrator:
The machine has many advantages such as high concentration ratio, high efficiency, easy operation, etc. And compared with the conventional process, it has the strengths of energy conservation, no medicine, easy management and high ratio of cost.

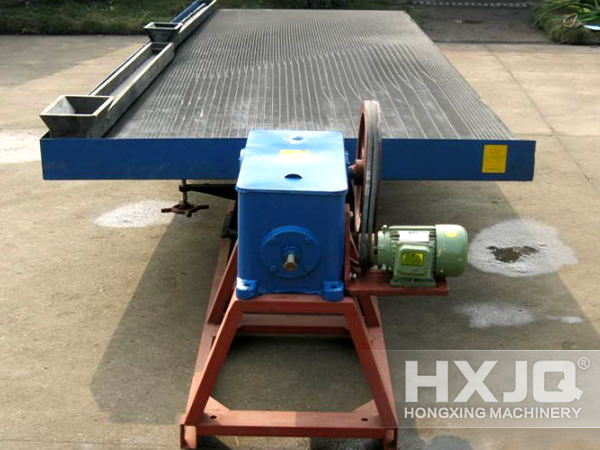

.jpg)
Table Concentrator Price:
Our company-----Henan Hongxing Mining Machinery Co., Ltd has long history of table concentrator production and we can provide various table concentrators with reasonable prices and high qualities.
Technical Parameters of Concentrator Table
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length （mm） |
4450 | 4450 | 4450 |
| Driving part Width （mm） |
1855 | 1855 | 1855 | |
| Concentrate part Width （mm） |
1546 | 1546 | 1546 | |
| Max.feeding size（mm） |
2 | 0.5 | 0.15 | |
| Feeding amount （t/d） |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke （mm） |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity （t/d） |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area（㎡） |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
